- Country
- United States of America (USA)
- Manufacturer / Brand
- Kennedy Co., Colin B.; San Francisco & St.Louis
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45435
-
- alternative name: Colin B. Kennedy Corp.
- Brand: Globe Trotter

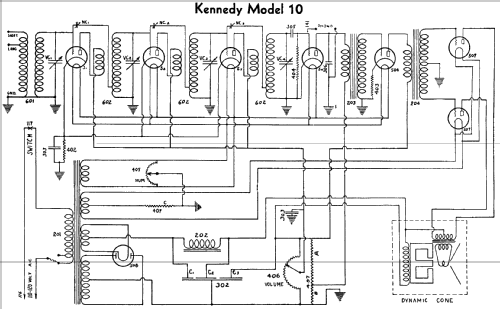

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 310 Ch= 10 - Kennedy Co., Colin B.; San
- Shape
- Console, Highboy (legs > 50 %).
- Notes
- Stretcher base. One dial (primary tuning control knob)
- Price in first year of sale
- 197.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Literature/Schematics (1)
- Radio Manufacturers of the 1920's, Vol. 2
