- Country
- United States of America (USA)
- Manufacturer / Brand
- Kennedy Co., Colin B.; San Francisco & St.Louis
- Year
- 1933 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233478
-
- alternative name: Colin B. Kennedy Corp.
- Brand: Globe Trotter
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 324 B 3256 - Kennedy Co., Colin B.; San
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 180 x 150 mm / 10.6 x 7.1 x 5.9 inch
- Notes
-
With a tube 6A7, 19233 is the most early date for this model.

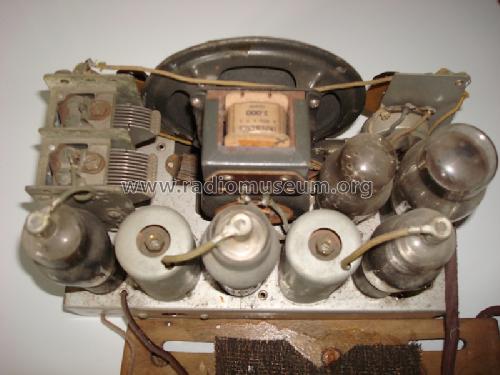

David Turpin, the creator of this page, worte to us: "I have found no references to this model, there is no identification plates on the chassis alone is 3256 note in pencil on the chassis and 324B on the wooden box."
- Author
- Model page created by David Turpin. See "Data change" for further contributors.
