- Country
- United States of America (USA)
- Manufacturer / Brand
- Kennedy Co., Colin B.; San Francisco & St.Louis
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18733
-
- alternative name: Colin B. Kennedy Corp.
- Brand: Globe Trotter
Click on the schematic thumbnail to request the schematic as a free document.

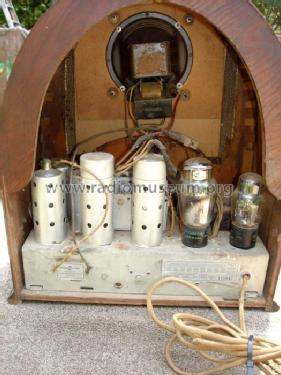

- Number of Tubes
- 5
- Main principle
- ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 110/120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.7 cm = 6.6 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 63A - Kennedy Co., Colin B.; San

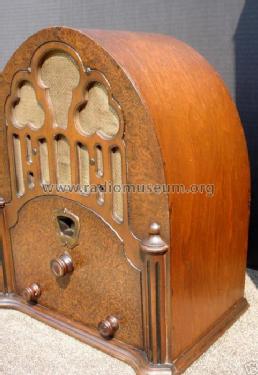

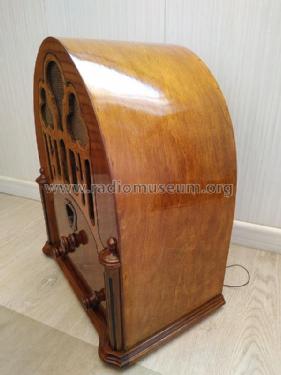

- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 360 x 420 x 220 mm / 14.2 x 16.5 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 7.2 kg / 15 lb 13.7 oz (15.859 lb)
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
