• Country
• United States of America (USA)

• Manufacturer / Brand
• Kennedy Co., Colin B.; San Francisco & St.Louis

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 45460

• • alternative name: Colin B. Kennedy Corp.
  • Brand: Globe Trotter

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• UY224 UY224 UY224 UY224 UY224 UY224 UY227 UY227 UX245 UX245 UX280

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 826B Ch= 26 + 34 [BC/SW] - Kennedy Co., Colin B.; San

• Shape
• Console with any shape - in general

• Notes
• Using chasses 26 (BC) and 34 (SW) together.

• Price in first year of sale
• 252.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Literature/Schematics (1)

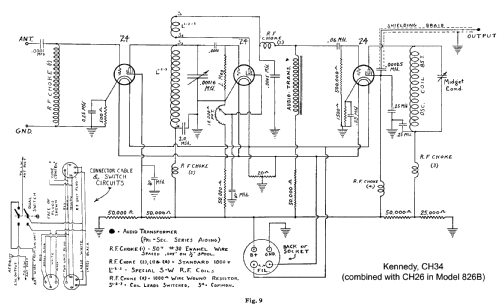

• -- Schematic

• Other Models

• Here you find 145 models, 76 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
