• Country
• Italy

• Manufacturer / Brand
• Kennedy (marca / brand); ved. le note / see text

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95918

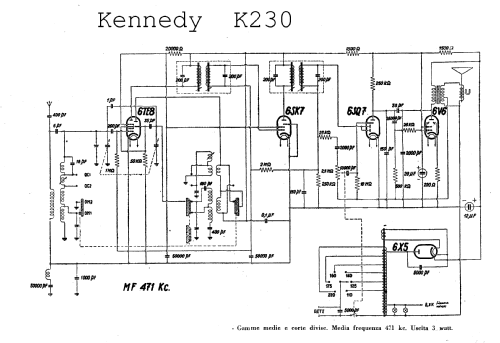

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SK7 6SQ7 6V6 6X5 6TE8

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: K230 - Kennedy marca / brand; ved. le

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 255 x 210 mm / 19.7 x 10 x 8.3 inch

• Notes
• Gamme d'onda: 2 x OM, 2 x OC.
  Wave bands: 2 BC, 2 SW.

• Other Models

• Here you find 125 models, 88 with images and 70 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kennedy (marca / brand); ved. le note / see text
