Unknown2
Kent Radio; (where?)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Kent Radio; (where?)
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298897
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Power out
- 1.6 W (undistorted)
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org

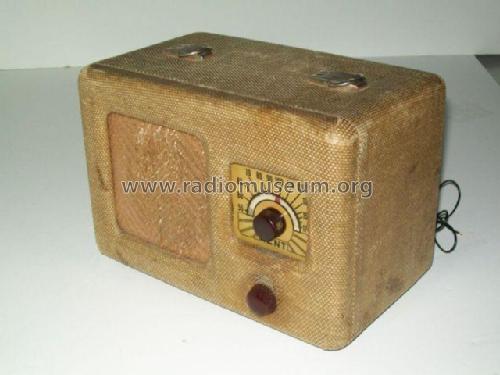

- Model: Unknown2 - Kent Radio; where?
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 8.25 x 5.75 x 5.5 inch / 210 x 146 x 140 mm
- Notes
-
This radio is similar to Kent Unknown, however, it has a different tube line-up and differences in the schematic.
Utilizes Grid Leak detection with a TRF front end and identical Volume Control circuitry (Antenna Shunt & TRF front end cathode bias.
- Net weight (2.2 lb = 1 kg)
- 3 lb 3 oz (3.188 lb) / 1.447 kg
- Literature/Schematics (2)
- -- Schematic
- Author
- Model page created by Richard Koenig. See "Data change" for further contributors.
