• Country
• United States of America (USA)

• Manufacturer / Brand
• Clinton Mfg.Co.; Chicago, IL

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 318966

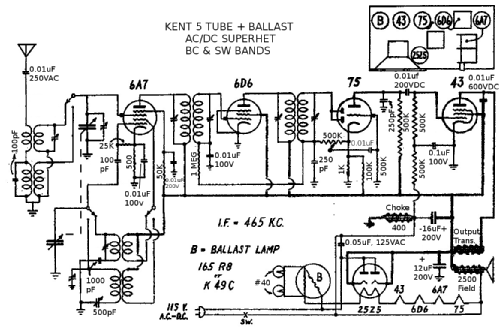

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 43 25Z5 165R8

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kent Unknown3 - Clinton Mfg.Co.; Chicago, IL

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Same basic chassis as the Clinton model 137 with one less shortwave band and other minor circuit variations.  This Kent model was manufactured by Clinton Mfg. Co. as identified by the orange license label with "Plant A, Chicago".

• Author
• Model page created by Jay Kinnard. See "Data change" for further contributors.
