• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359217

• • alternative name: Trio Corp.
  • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 42

• Semiconductors
• 2SK55 2SC381 2SC1342 AN217 µPC554 2SC945 NE545 TA7129 2SC1222 or. 2SC1345 2SA733 2SK30 2SC1419 2SA763 2SC1628 2SA818 2SA620 2SD415 2SB549 2SC1403 2SA745 2SC1416 2SC1212

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 110-120; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

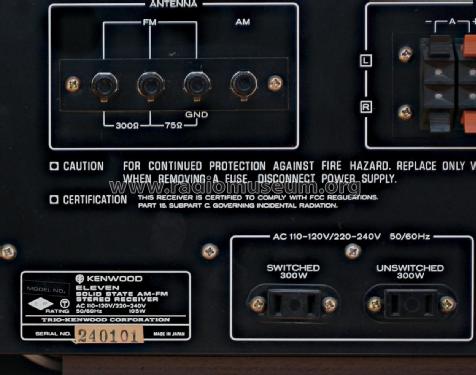

• Model: Solid State AM-FM Stereo Receiver Eleven - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 574 x 198 x 350 mm / 22.6 x 7.8 x 13.8 inch

• Notes
• • Power output: 60 W per channel into 8 Ω (stereo)
  • Frequency response: 10 Hz to 40 kHz
  • Total harmonic distortion: 0.3%
  • Damping factor: 50 (load 8 Ω)
  • Input sensitivity: 2.5 mV (mic), 2.5 mV (MM), 150 mV (DIN), 150 mV (line)
  • Signal to noise ratio: 70 dB (mic), 77 dB (MM), 95 dB (DIN), 95 dB (line)
  • Output: 150 mV (line), 30 mV (DIN), 1 V (Pre out)
  • Speaker load impedance: 4 Ω to 16 Ω

  Each transistor or IC type is only listed once.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. (Kenwood Service Manual)

• Author
• Model page created by Peter Liska. See "Data change" for further contributors.
