Trio Single Channel Oscilloscope CS-1559

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 337876
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60 Hz: 100; 120; 220; 240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Trio Single Channel Oscilloscope CS-1559 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 260 x 190 x 375 mm / 10.2 x 7.5 x 14.8 inch
  • Notes

  • Single channel oscilloscope with 130 mm CRT. Bandwidth: DC - 10 MHz (-3 dB).
    Automatic sweep. Input: 1 MΩ 22 pF. Deflection: 10 mV/div. to 20 mV/div.



  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Mentioned in

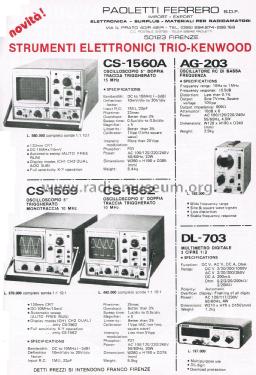

  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 12, December 1977.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
