• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 352315

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

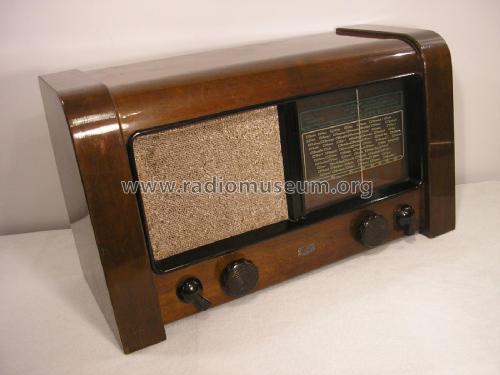

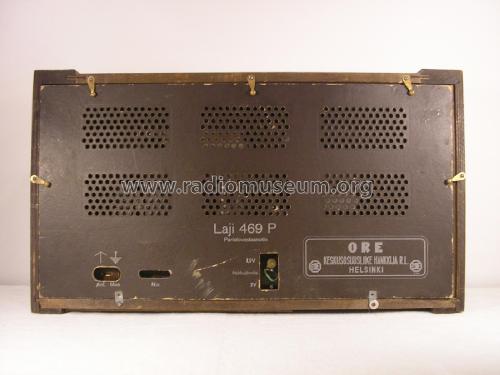

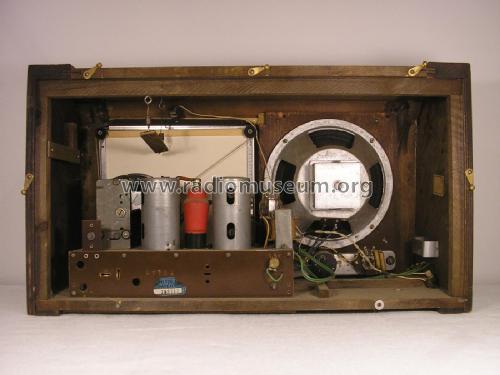

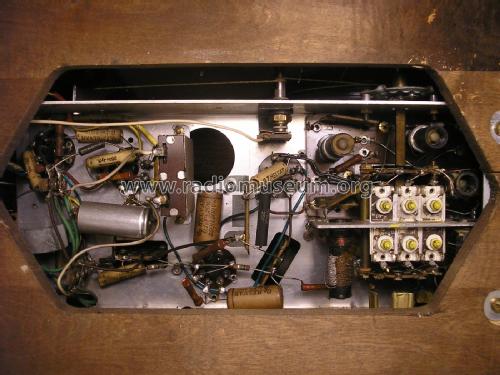

  • Model: Laji 469P - Keskusosuusliike Hankkija R.L.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 567 x 323 x 244 mm / 22.3 x 12.7 x 9.6 inch
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
