RP570T
Ketay Mfg. Corp.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ketay Mfg. Corp.
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45488
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 156 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RP570T - Ketay Mfg. Corp.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17 x 8.25 x 8.5 inch / 432 x 210 x 216 mm
- Net weight (2.2 lb = 1 kg)
- 12.2 lb (12 lb 3.2 oz) / 5.539 kg
- External source of data
- Ernst Erb

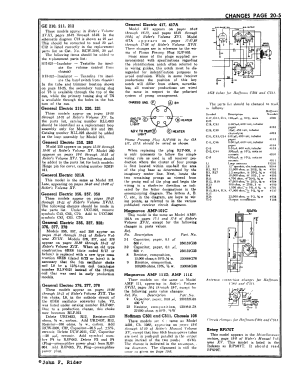

- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
