Cinecorder Ch= BSR TD2
KGM Electronics (K.G.M.); Richmond
- Country
- Great Britain (UK)
- Manufacturer / Brand
- KGM Electronics (K.G.M.); Richmond
- Year
- 1961 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 290720
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Alternating Current supply (AC) / 110 - 240 Volt
- Loudspeaker

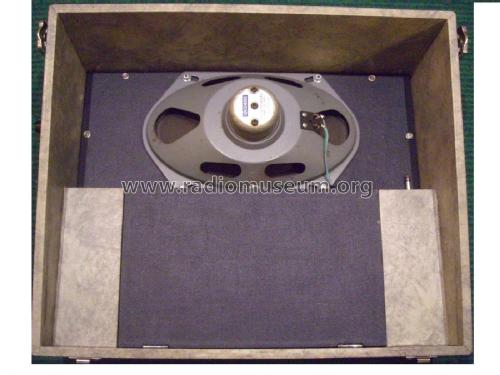

- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 250 cm = 98.4 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Cinecorder Ch= BSR TD2 - KGM Electronics K.G.M.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 390 x 225 mm / 17.7 x 15.4 x 8.9 inch
- Notes
-
The Cinecorder was developed for synchronisation with film projection machines.

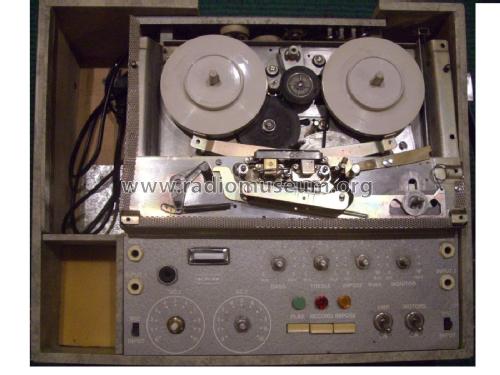

Uses the BSR tape deck chassis TD2 without electronics, modified for usage with perforated tape. Tape speed: 3¾ ips, reel diam. 5¾ inch.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Author
- Model page created by Bozhidar Mladenov. See "Data change" for further contributors.
