• Country
• United States of America (USA)

• Manufacturer / Brand
• King Manufacturing Corp.; Buffalo, NY

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 45528

• • alternative name: King Quality Products || King-Buffalo Inc. || King-Hinners Radio Co.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

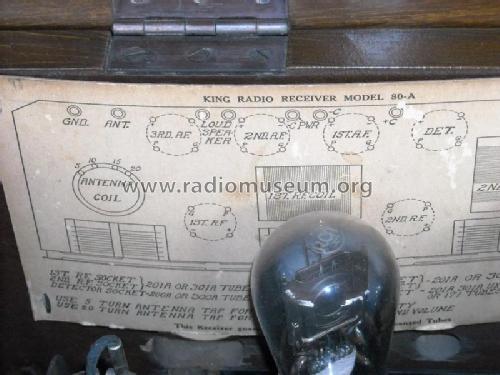

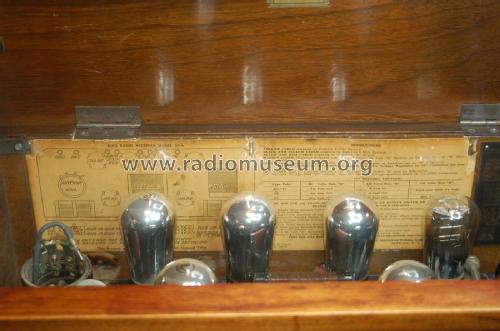

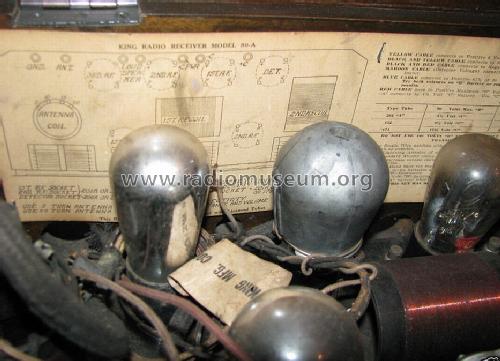

• CX301A CX301A CX300A or CX301A or CX112A CX301A CX301A CX112A or CX371A

• Main principle
• TRF without regeneration; 3 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / "A" storage battery 6, "C" acc. to tubes, "B" 67.5 + 45 + 135 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Baronet 80-A - King Manufacturing Corp.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• One dial (primary tuning control knob). The same model chassis 80 is used for the console radio Viking 80.

  The Sears model Silvertone E, 80, 81, F (R4430), 82, Power pack 82, J (R4433, H (R4432) have been made by King Mfg. Corp. and the schematics are shown in Gernsback page 207 to 209.

• Price in first year of sale
• 70.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Official Radio Service Manual and Complete Directory of all Commercial Wiring Diagrams (207)
