• Country
• Australia

• Manufacturer / Brand
• Kingsley (brand); various manufacturers

• Year
• 1962–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294203

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6N8 6GW8 6GW8

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

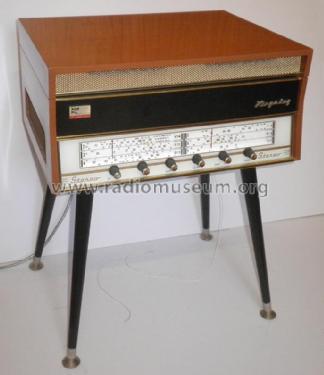

• Model: Kingsley RKR Radiogram - Kingsley brand; various

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 19 x 10 x 15 inch / 483 x 254 x 381 mm

• Notes

• Total height with optional legs is 24 inches. The RKR circuit is closely based on the Philips 227 Tempo radiogram, with 6GW8 audio output valves instead of 6DX8, and it uses a high proportion of Philips and Mullard components.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 61.95 AUS £

• Author
• Model page created by Susan Butcher. See "Data change" for further contributors.
