• Country
• Germany

• Manufacturer / Brand
• Klangfilm GmbH

• Year
• 1950 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 228549

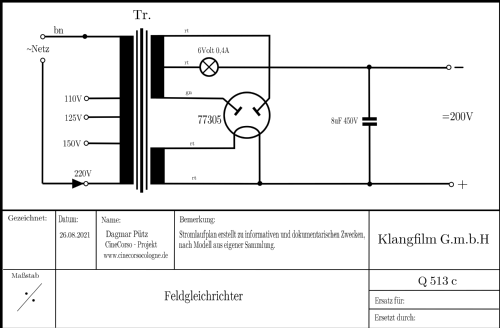

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• KL77305

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

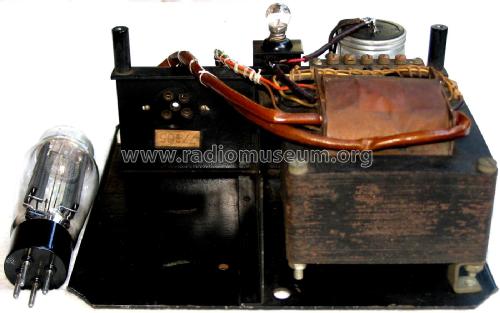

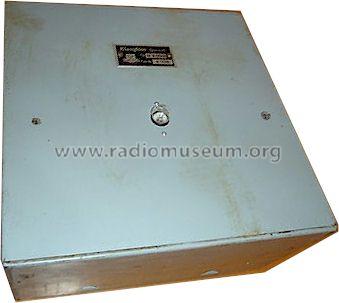

• Model: KL Q 513 c - Klangfilm GmbH

• Shape
• Chassis only or for «building in»

• Notes

• 200 V DC für Feldspule.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
