- Country
- Spain
- Manufacturer / Brand
- Klarmax-Radio; Asencio Quirant Gonzálvez; Elche
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 320939

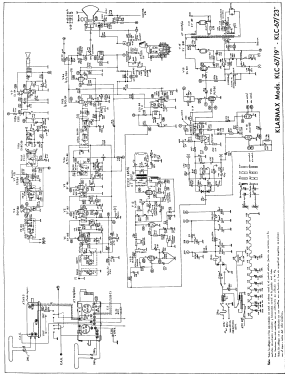

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PCC189 PCF86 EF183 EF183 EF184 PCL84 EF184 EABC80 EL84 PCL85 ECH84 ECC82 PCF80 PL500 PY88 DY87 A47-12W
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: KLC-67/19 - Klarmax-Radio; Asencio Quirant
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Klarmax Radio (Asencio Quirant Gonzalvez), KLC-67/19
TV B/N 19"
- Selector rotativo VHF COPRESA AT-7639 /90U
- Sintonizador transistorizado de UHF Copresa AT-165 S
- Mentioned in
- Esquemario TV REDE, Tomo IV, 1968
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
