Stil VEGA Super 402AW
Vega (brand), Klaveness Radiofabrikk; Oslo
- Country
- Norway
- Manufacturer / Brand
- Vega (brand), Klaveness Radiofabrikk; Oslo
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 198316
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Stil VEGA Super 402AW - Vega brand, Klaveness
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 240 x 160 mm / 15 x 9.4 x 6.3 inch
- Notes

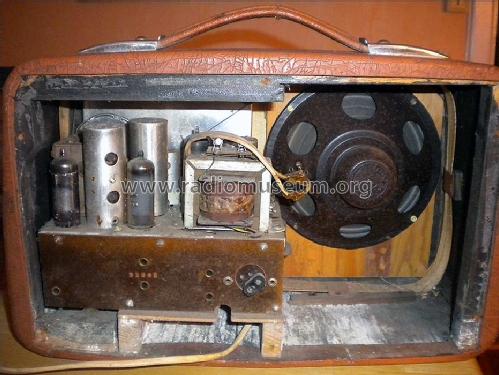

- The Stilsuper 402A with its U-type tubes is most probably for AC/DC and the Stilsuper 402AW with E-type tubes for AC only. The 402AW has a handle and looks like a portable but is a mains operated model. Diode for the mains rectifier.
- External source of data
- Guest Roy Hagen
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
