• Country
• Norway

• Manufacturer / Brand
• Vega (brand), Klaveness Radiofabrikk; Oslo

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 221001

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 120, 220 / 90 & 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

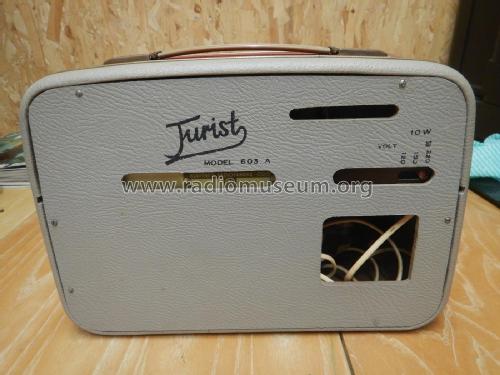

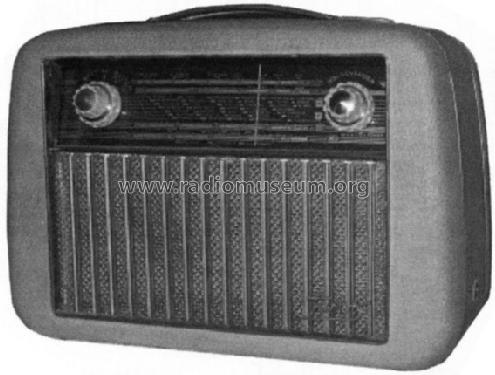

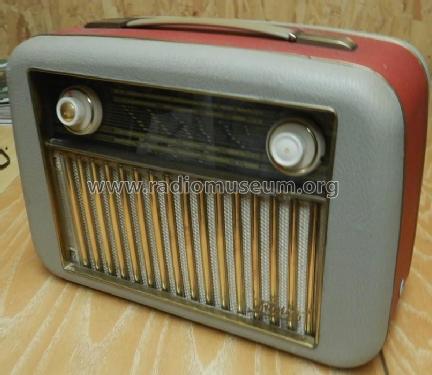

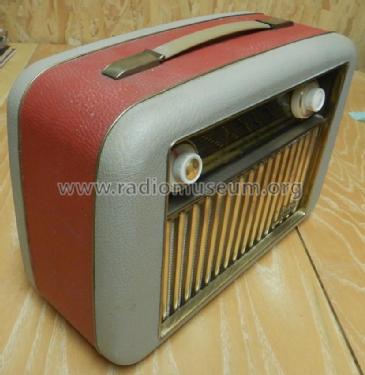

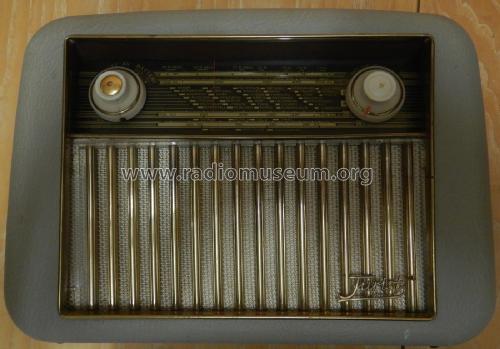

• Model: Vega Turist 603A - Vega brand, Klaveness

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 260 x 145 mm / 14.2 x 10.2 x 5.7 inch

• Mentioned in
• Norwegian Historical Radio Society

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.

• Other Models

• Here you find 21 models, 21 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
