• Country
• Germany

• Manufacturer / Brand
• Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 125656

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECF80 EL500 or EL5000 EL500 or EL5000

• Number of Transistors

• Semiconductors
• BYY91 BYY91 E250C50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Endverstärker V-30 [EL500] - Klein & Hummel; Stuttgart-

• Shape
• Chassis only or for «building in»

• Notes

• Studio Endstufe.

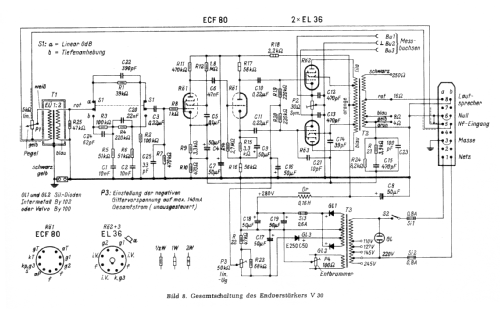

  Siehe auch K+H Endverstärker V-30 mit EL36 in der Endstufe.

• Literature/Schematics (1)

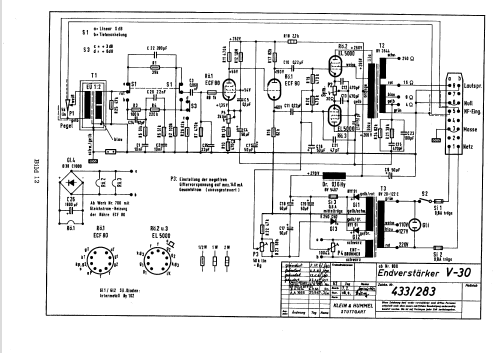

• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
