Telewatt High Fidelity FM Stereo Tuner ET 20

Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

  • Year
  • 1968–1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85410

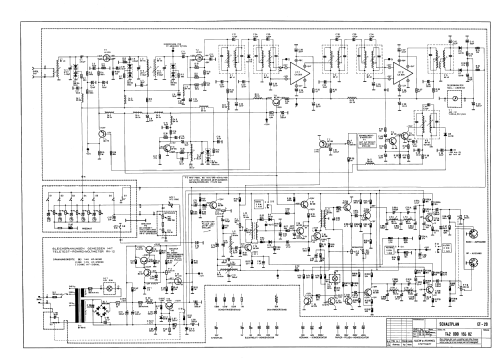

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 10700 kHz
  • Tuned circuits
  • 14 AM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 220; 245 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Telewatt High Fidelity FM Stereo Tuner ET 20 - Klein & Hummel; Stuttgart-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 412 x 110 x 265 mm / 16.2 x 4.3 x 10.4 inch
  • Notes
  • K+H HiFi Stereo FM Tuner ET 20
    5 Stationstasten, Ausgänge für Verstärker und Tonband-Aufnahme.

    Passender Verstärker: K+H_ES_20

    Die Bezeichnung "Telewatt" findet sich teilweise in der Literatur (HiFi-Jahrbuch), jedoch nicht am Gerät.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 995.00 DM
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Original-techn. papers. (Bedienungsanleitung, Preisliste 1969)
  • Literature/Schematics (1)
  • HiFi-Jahrbuch 5 (1970), Verlag G. Braun
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
