• Country
• Germany

• Manufacturer / Brand
• Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

• Year
• 1957–1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 22888

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC83 ECL82 EL84 EL84 EZ81

• Number of Transistors

• Semiconductors
• OA81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 17 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

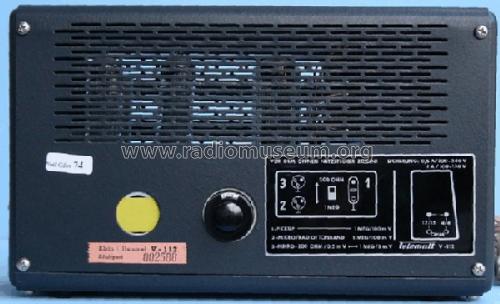

• Model: Telewatt V-112 Hi-Fi - Klein & Hummel; Stuttgart-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 160 x 105 mm / 10.6 x 6.3 x 4.1 inch

• Notes
• Mischverstärker; Frequenzbereich 20-20000 Hz; 3 Eingänge, 3 Ausgänge.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Price in first year of sale
• 398.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
