• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 273976

• • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC81 EF86 ECC81 ECC82

• Number of Transistors

• Semiconductors
• BA170 BA170 B300C70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

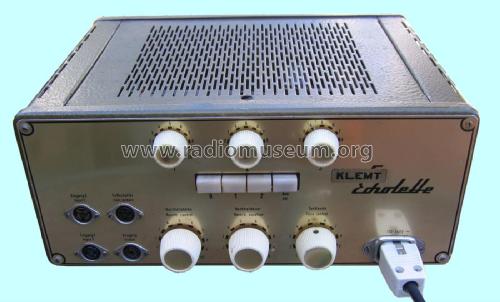

• Model: Echolette NG4 - Echolette Marke / brand;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 320 x 140 x 250 mm / 12.6 x 5.5 x 9.8 inch

• Notes

• Echo-Nachhallerzeugung über Endlosbandschleife DE 299.
  3 Aufnahmeköpfe,  1 Wiedergabekopf, 1 Löschkopf.
  Echoanzahl max. 10, Nachhalldauer max. 3 sec.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Mentioned in
• http://www.el-me-se.de/old/pdf_files/NG3-NG4.pdf

• Literature/Schematics (1)

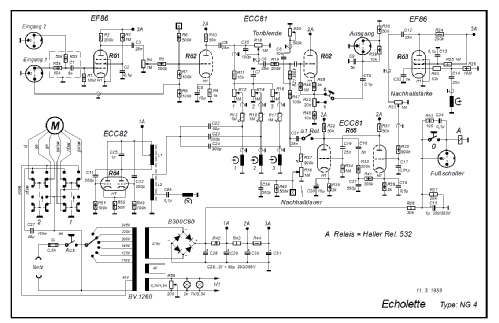

• -- Schematic (http://www.peel.dk/Dynacord/pdf/NG%204.pdf)
