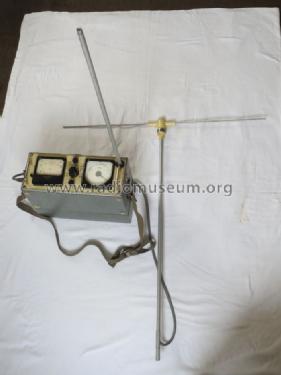

VHF-Voltmeter V600M
Klemt, Arthur; Olching
- Country
- Germany
- Manufacturer / Brand
- Klemt, Arthur; Olching
- Year
- 1956
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 230435

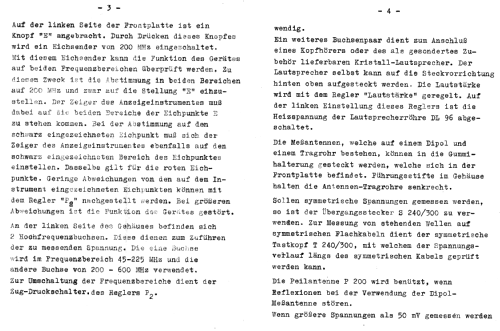

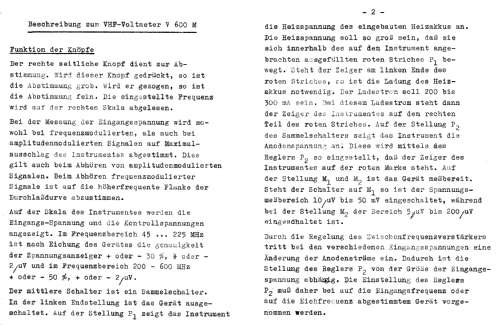

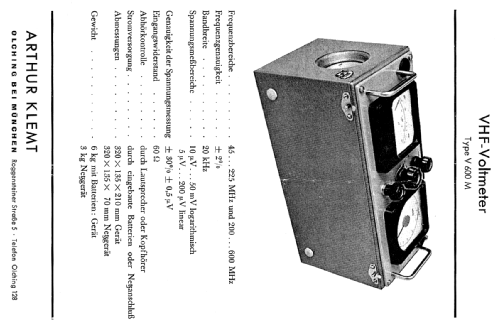

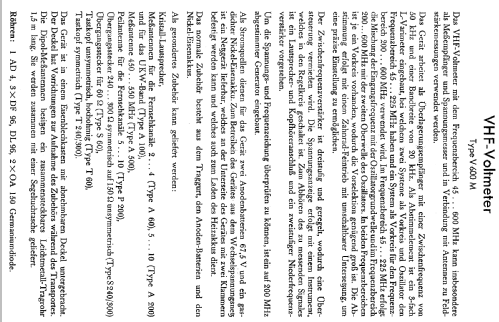

Bedienungsanleitung

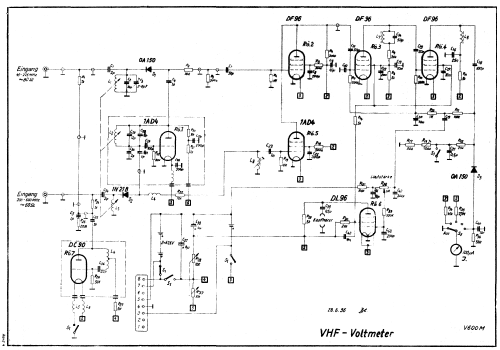

Click on the schematic thumbnail to request the schematic as a free document.

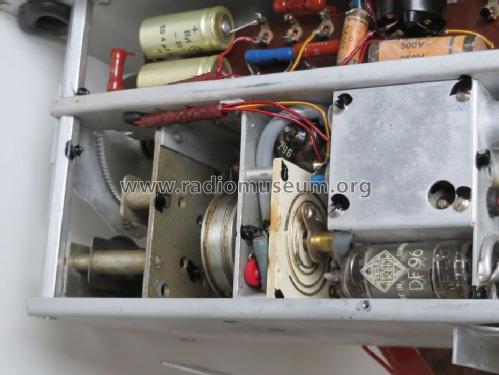

- Number of Tubes
- 7
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 50 kHz; 1 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 220 / 1 x 1,4 & 2 x 67,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

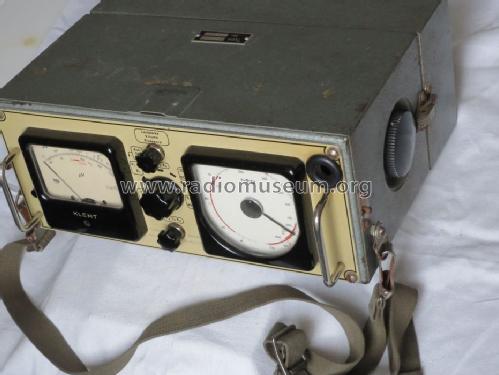

- Model: VHF-Voltmeter V600M - Klemt, Arthur; Olching
- Dimensions (WHD)
- 320 x 210 x 135 mm / 12.6 x 8.3 x 5.3 inch
- Notes
-
Frequenzbereiche: 45...225 MHz und 200...600 MHz

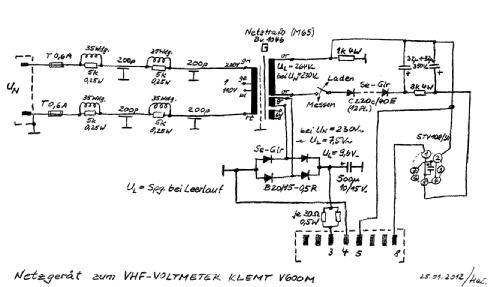

Netzgerät (320 x 70 x 135mm, 3 kg) an der Unterseite ansteckbar, mit 2 Klammern gesichert.
Anodenspannungsstabilisierung mit STV108/30 im Netzgerät.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Karl-Friedrich Haupenthal. See "Data change" for further contributors.
