• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1965 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 110661

• • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC808 ECC808 ECC808 EL34 EL34

• Number of Transistors

• Semiconductors
• E60C45 B380C600

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 32 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

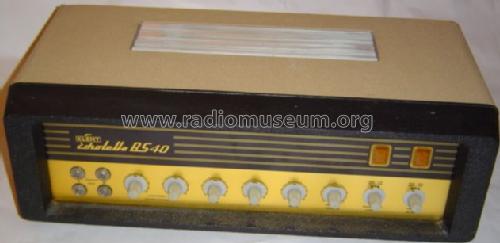

• Model: Echolette BS40 - Echolette Marke / brand;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 555 x 185 x 285 mm / 21.9 x 7.3 x 11.2 inch

• Notes
• Verstärker speziell für E-Bass.

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Mentioned in
• -- Schematic (Technische Daten aus Echolette HiFi-Archiv)

• Author
• Model page created by Jürgen Stichling. See "Data change" for further contributors.
