• Country
• United States of America (USA)

• Manufacturer / Brand
• KLH R&D Co.; Cambridge (MA)

• Year
• 1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 136866

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4.5 inch = 11.4 cm

• Power out
• 30 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Stereo Portable Phonograph Model Eleven - KLH R&D Co.; Cambridge MA

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 220 x 360 mm / 18.1 x 8.7 x 14.2 inch

• Notes

• 30 watt peak all-transistor stereo amplifier; Garrard AT-6 4-speed record changer. Pickering 380C magnetic pickup with diamond stylus. 2 KLH speaker systems up to 40ft. Inputs for tuner or tape recorder.

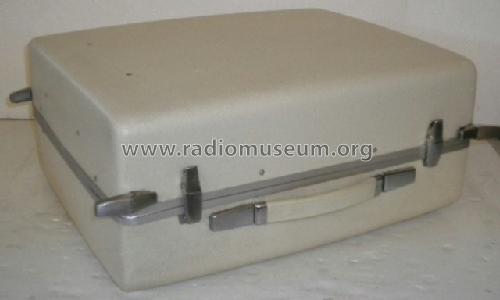

  Luggage-styled case of vinyl-covered "Contourlite".

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 199.00 USD

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-64, Set 721, Folder 9)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
