- Country
- Germany
- Manufacturer / Brand
- Klingenthaler Harmonikawerke, VEB; Klingenthal (Sachsen) (Vermona)
- Year
- 1987/1988 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 107552
-
- alternative name: Musikelektronik Klingenthal (VEB) (Ostd.)
Aus Conrad-Katalog 1988
Aus Konrad-Katalog 1988

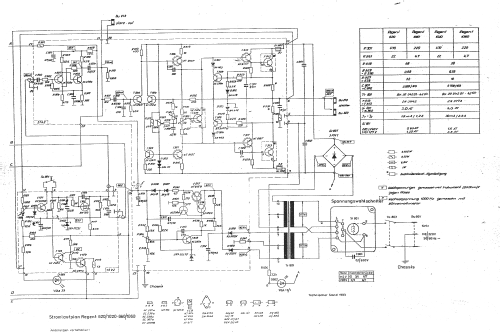

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Regent 1020 - Klingenthaler Harmonikawerke,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 510 x 150 x 340 mm / 20.1 x 5.9 x 13.4 inch
- Notes
- 100/150-W-Instrumentalverstärker; 2 regelbare Eingänge, nachgeschalteter 7-stufiger Grafik-Equalizer, 775-mV-Steuerausgang für Zusatzverstärker, Eingangsempfindlichkeitsumschaltung mittels Boost-Taste von 4 zu 40 mV, 1 Summenregler.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 598.00 DM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Conrad Katalog 1988, Seite 241
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
