Knight 3-Way Portable Radio Kit
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98833

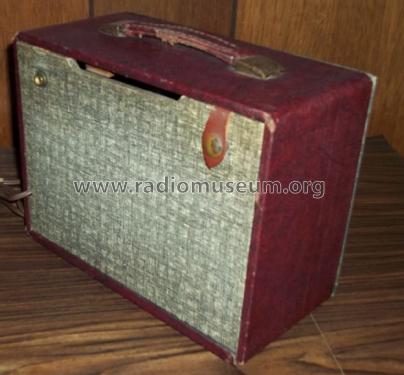

Side View
Rear View With Back Off
Rear View

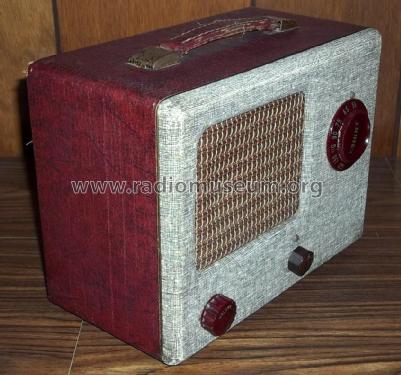

Knight 3-Way Portable Radio Front View
Side View
Chassis Bottom View
Chassis Top View
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-120; 2 x 1.5, 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Knight 3-Way Portable Radio Kit - Allied Radio Corp. Knight,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.25 x 7.5 x 5.25 inch / 260 x 191 x 133 mm
- Notes
- Ferrite loop-stick antenna.
- Price in first year of sale
- 19.00 $
- Literature/Schematics (1)
- Allied Radio Catalog Nº 150, 1956
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
