• Country
• Germany

• Manufacturer / Brand
• Knott Elektronik; Hohenschäftlarn

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 220822

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

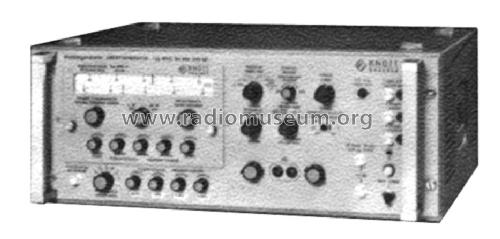

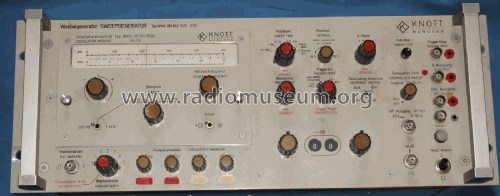

• Model: Wobbelsender WMC - Knott Elektronik;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Der Wobbelgenerator WMC ist Komponente des Polyskanner II.
  Je nach Oszillatoreinschub 100 Hz bis 1200 MHz;Ausgangsspannungsteiler 0 bis 120 dB in 1 dB-Stufen (7 x 10 dB / 1 x 40 dB / 10 x 1 dB).

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
