All Wave Transistor Radio 2 Band Transistor 6 KT-200
TEN (brand), Kobe Kogyo Corporation; Kobe
- Country
- Japan
- Manufacturer / Brand
- TEN (brand), Kobe Kogyo Corporation; Kobe
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290682
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / UM3: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.1 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

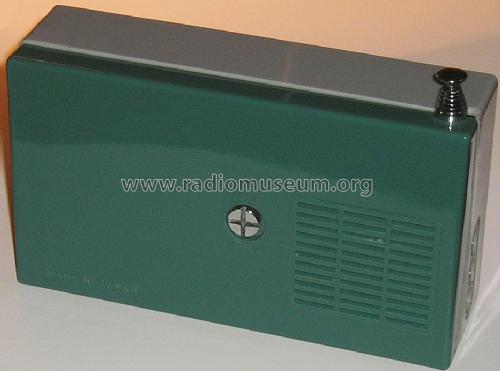

- Model: All Wave Transistor Radio 2 Band Transistor 6 KT-200 - TEN brand, Kobe Kogyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 168 x 96 x 45 mm / 6.6 x 3.8 x 1.8 inch
- Notes
-
Wave bands: MW 530 - 1216 Kc, SW 4 - 12 MHz.
Telescope antenna ~85 cm, ferrite antenna for MW.
2 earphone jacks, 1 earth jack.
- Author
- Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
