• Year
  • 1929/1930
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 15438

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-150; 210-250 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

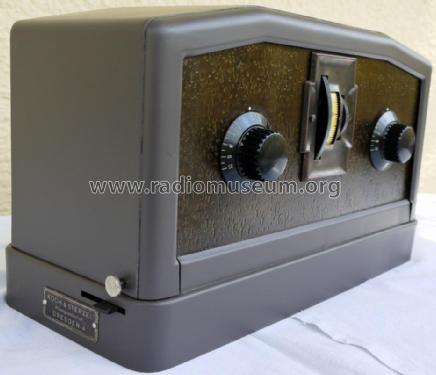

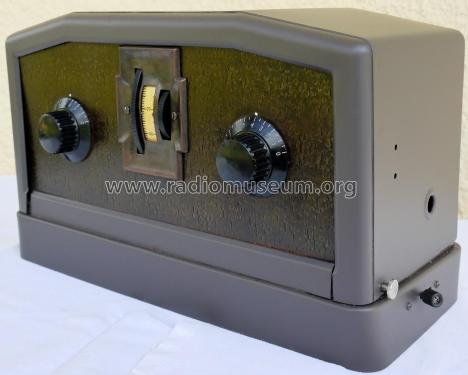

  • Model: Hermes ER355 - Koch & Sterzel AG; Dresden
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 370 x 210 x 180 mm / 14.6 x 8.3 x 7.1 inch
  • Notes
  • 2 Mod.
  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Price in first year of sale
  • 219.00 RM !
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
