• Country
• Germany

• Manufacturer / Brand
• König Electronic GmbH; Reichelsheim

• Year
• 1995 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 173267

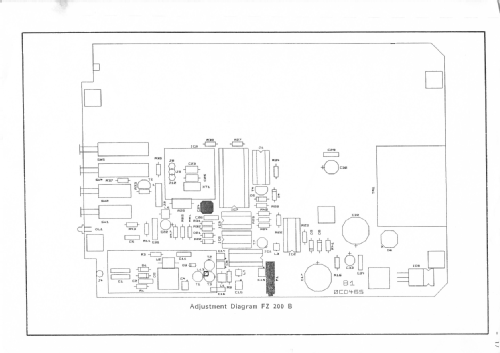

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

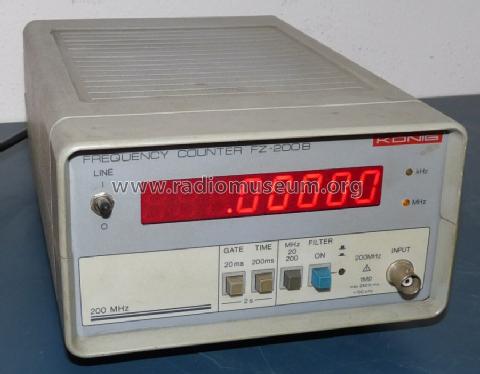

• Model: Frequenzzähler FZ-200B - König Electronic GmbH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 160 x 103 x 250 mm / 6.3 x 4.1 x 9.8 inch

• Notes
• Frequenzbereich 20 Hz bis 200 MHz; 8-stellige LED-Anzeige, verschiedene Torzeiten schaltbar, Tiefpass bei Messungen unterer Frequenzen.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
