Oszilloskop OS-25 D (5710)
König Electronic GmbH; Reichelsheim
- Country
- Germany
- Manufacturer / Brand
- König Electronic GmbH; Reichelsheim
- Year
- 1999
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 143597

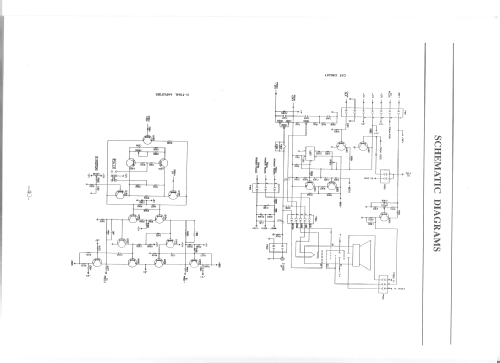

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszilloskop OS-25 D - König Electronic GmbH;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 324 x 132 x 398 mm / 12.8 x 5.2 x 15.7 inch
- Notes
- Oszilloskop OS-25 D (5710), Meßbereich bis 25 MHz, Rechteckröhre 8 x 10 cm mit Innenraster.
- Net weight (2.2 lb = 1 kg)
- 7.6 kg / 16 lb 11.8 oz (16.74 lb)
- Mentioned in
- - - Manufacturers Literature (König Katalog 1999)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
