• Country
• Germany

• Manufacturer / Brand
• König Electronic GmbH; Reichelsheim

• Year
• 1996 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 224362

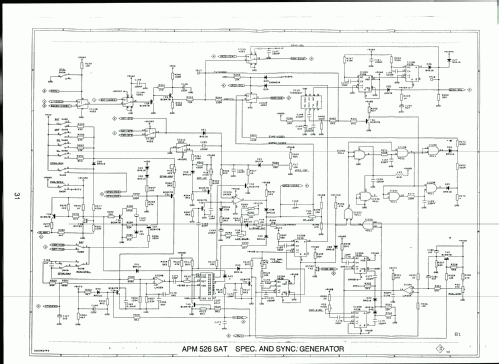

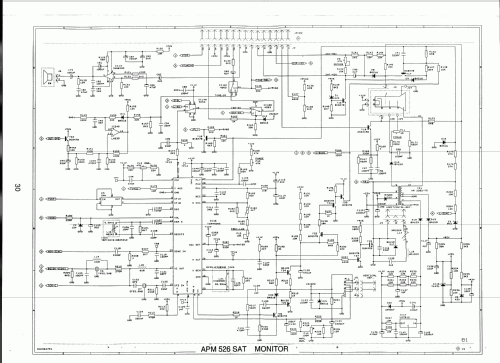

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Metal case

• from Radiomuseum.org

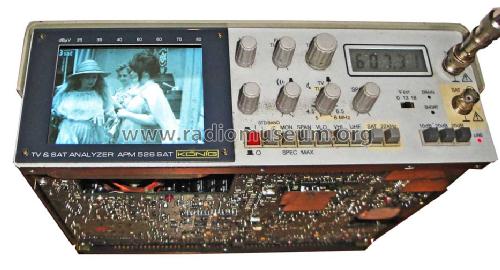

• Model: TV & SAT Analyzer APM 526 SAT - König Electronic GmbH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 100 x 230 mm / 11 x 3.9 x 9.1 inch

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 94 models, 93 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
