• Country
• Germany

• Manufacturer / Brand
• König Electronic GmbH; Reichelsheim

• Year
• 1980 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 176901

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC170 BC170 BC170 TCA105

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

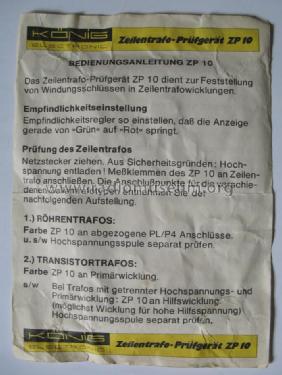

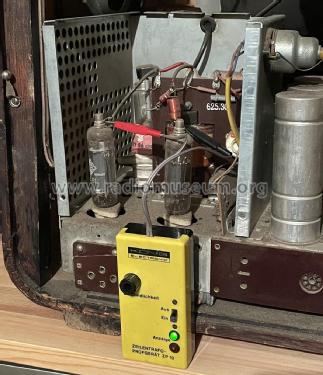

• Model: Zeilentrafo-Prüfgerät - Line-Transformer Tester ZP-10 - König Electronic GmbH;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 50 x 100 x 25 mm / 2 x 3.9 x 1 inch

• Notes
• 1 IC. Geeignet für folgende Tests: Röhrentrafos, Transistortrafos & Thyristortrafos.

• Source of data
• -- Schematic

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
