Heiz-Akkumulator DH1E
Kölner Accumulatoren-Werke (KAW), Gottfried Hagen AG; Köln-Kalk
- Country
- Germany
- Manufacturer / Brand
- Kölner Accumulatoren-Werke (KAW), Gottfried Hagen AG; Köln-Kalk
- Year
- 1930 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 145027
-
- Brand: KAW
Quelle: Original-Prospekt.
- Wave bands
- - without
- Power type and voltage
- Is a battery or storage battery / 4 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: Heiz-Akkumulator DH1E - Kölner Accumulatoren-Werke KAW
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 156 x 220 x 96 mm / 6.1 x 8.7 x 3.8 inch
- Notes
-

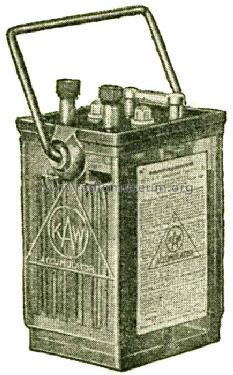

Heiz-Akkumulator DH1E.
Doppelelement mit Gitterplatten im Rippenglas mit Traggriff.
4 V; max. 2 A
;25 Ah mit 0,25 A und 100-stündiger Entladung;
14 Ah mit 1,4 A und 10-stündiger Entladung.
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by a member from D. See "Data change" for further contributors.
