Chico 12" 1812
Kolster Iberica, S.A. ; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Kolster Iberica, S.A. ; Barcelona
- Year
- 1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 320975
Anuncio de 1966 en revista desconocida

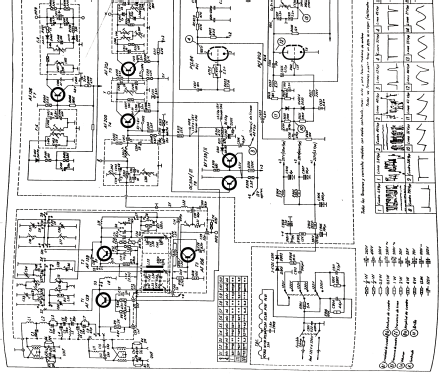

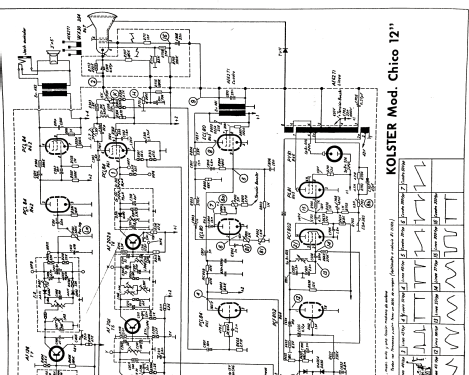

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 9
- Semiconductors
- AF139 AF139 AF106 AF200 AF201 AF202 AF126 BFY39 OC304 E125C500 E125C500 OA90 OA150 AA111 AA111 M40C4 M40C4 TV11
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Chico 12" 1812 - Kolster Iberica, S.A. ;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Kolster Ibérica, S.A., Chico - 1812
TV B/N 12" con sintonia continua VHF-UHF.
Altavoz elíptico de 3" x 5"
Con licencia de Imperial Rundfunk und Fernseh. Véase Chico Ch=1812
- Price in first year of sale
- 13,884.00 Pts
- Mentioned in
- Anucio La Vanguardia Española 30 noviembre 1965
- Literature/Schematics (1)

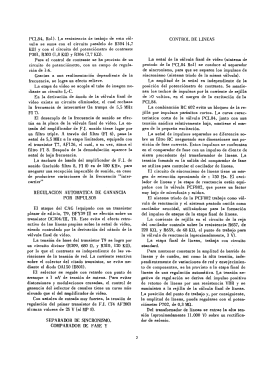

- Esquemario TV REDE, Tomo IV, 1968
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
