• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201836

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• FC2A VP2 TDD2A PM22A

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 135 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: KB 720 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Tablemodel, low profile (big size).

• Notes

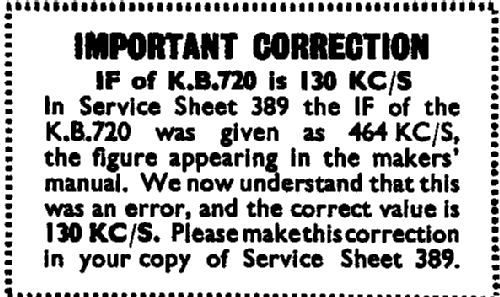

• IF given as 464 kHz in Trader sheet 389, a note appeared a week later in Trader sheet 391 changing it to 130 kHz.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (389)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
