- Country
- Great Britain (UK)
- Manufacturer / Brand
- Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104633
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 464 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker

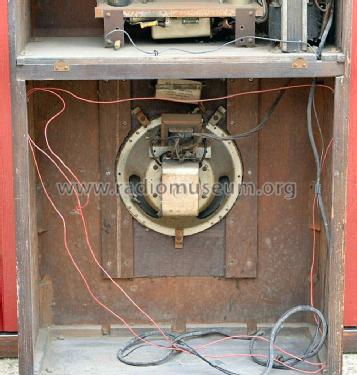

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: KB 871 - Kolster Brandes Ltd. KB, K.B.,
- Shape
- Console with any shape - in general
- Notes
- The same chassis is fitted in the KB 870 table radio.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

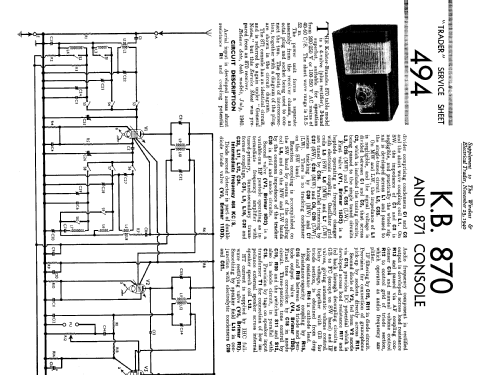

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (494)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
