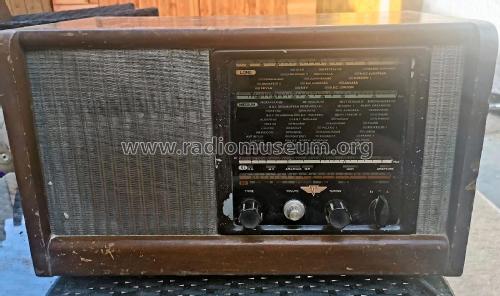

BR20T

Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 312377

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 150, 200, 225, 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: BR20T - Kolster Brandes Ltd. KB, K.B.,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 17.5 x 10 x 10.5 inch / 445 x 254 x 267 mm
  • Notes

  • Export version of the KB BR20

    Wavebands; MW 195 - 540m, LW 750 - 2200m, SW1 45 - 156m, SW2 13.5 - 42.4m

  • Mentioned in
  • - - Manufacturers Literature
