- Country
- Great Britain (UK)
- Manufacturer / Brand
- Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Year
- 1948/1949
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 253698

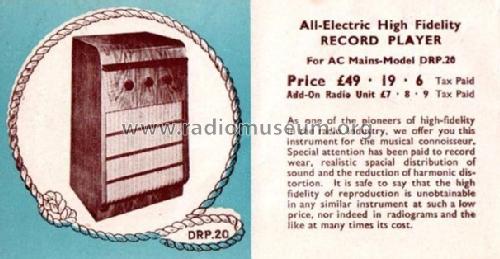

1949 sales brochure

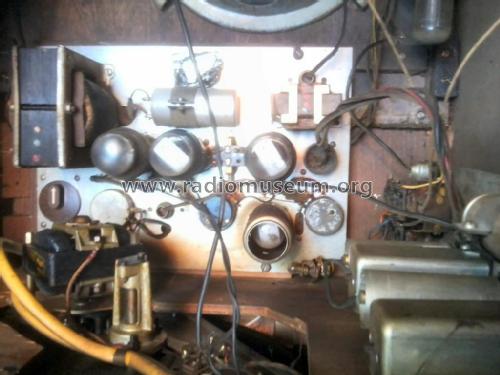

Image is from service manual
from long expired Ebay auction
from long expired Ebay auction
from long expired Ebay auction
from long expired Ebay auction
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 200; 225; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: DRP20 - Kolster Brandes Ltd. KB, K.B.,
- Shape
- Console with any shape - in general
- Notes
-
"High-fidelity record reproducer consisting of a 5 valve amplifier with push-pull output with a Garrard type V single record player fitted with a Decca FFR lightweight pickup fitted with a sapphire stylus."
"Provision is made in the amplifier chassis and in the cabinet for the installation of a 2 valve preset tuned superhet radio unit. type CRP20/R giving a choice of 3 programmes". (e.g. Home Light Third)
Fitted with variable bass and treble controls
Same chassis as KB CRP20
- Mentioned in
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (ERT Feb.1951)
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
