• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104644

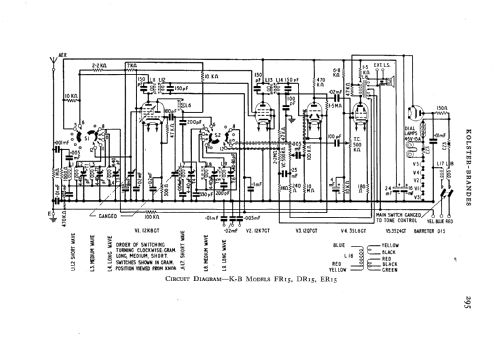

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12K8GT 12K7GT 12Q7GT 35L6GT 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: ER15 - Kolster Brandes Ltd. KB, K.B.,

• Notes
• Similar to the KB DR15, FR15 and GR15 models.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

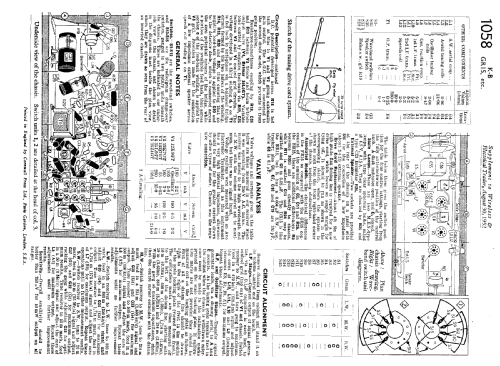

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1058)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
