• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249376

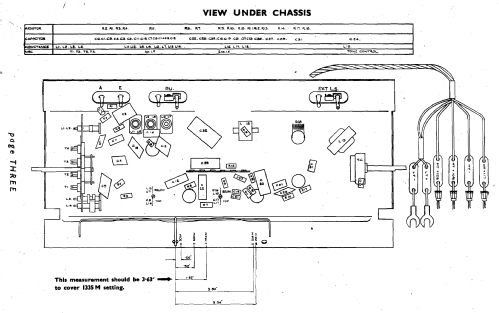

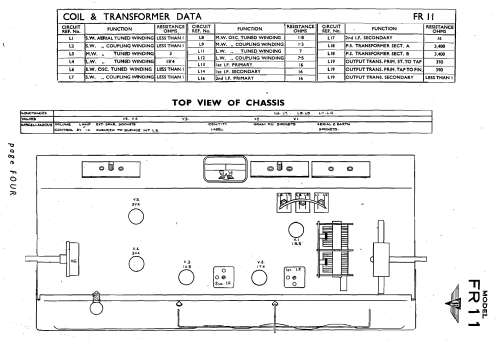

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1T4 1U5 3V4 3V4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / see notes Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: FR11 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 21.5 x 13.5 x 6.5 inch / 546 x 343 x 165 mm

• Notes

• Kolster-Brandes model FR11 is a battery operated table top receiver.

  Similar cabinet to the AC model FR10, and based on FR10 chassis but with B7G minature valves and corresponding changes to circuit.

  HT +117 108 & 10.5 volts

  LT 2 volt

  The 2V is not a mistake, even though it's 1.4V tubes/valves. The 2V Lead Acid was much cheaper to charge than buying drycells and could be charged at the local cycle shop, radio shop or garage.

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
