• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 258857

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AT7 6U8 6BJ6 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 422/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

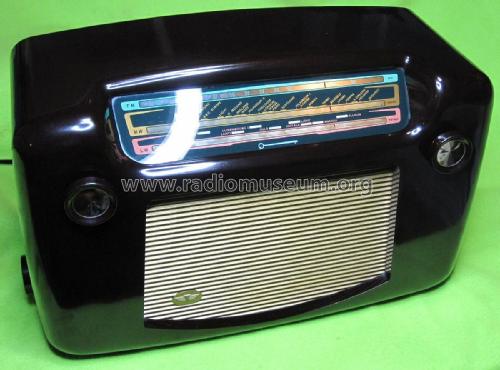

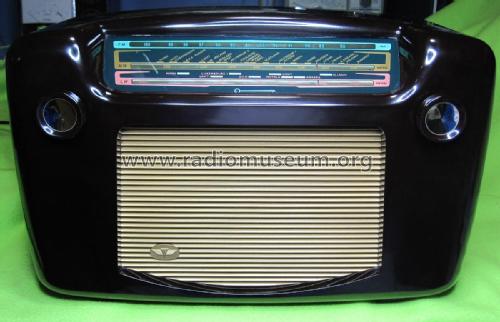

• Model: MR10 [6U8 ] - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 250 x 160 mm / 15.4 x 9.8 x 6.3 inch

• Notes

• Measurements exclude knobs
  FM Coverage 87 to 100.5MHz

  See also Kolster-Brandes MR10 with valve 6BE6 in AM-mixer/1st FM IF amplifier.

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
