• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78215

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• HLB1 or PM1HL or HL2 or 210HF HLB1 or PM1HL or HL2 or 210HF PenB1 or PM22A or Pen220 or 220HPT or PT2

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 0.35 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

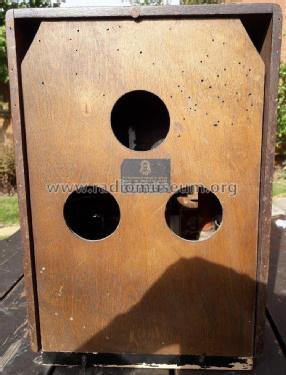

• Model: New Pup KB 362 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 10.75 x 16 x 8.75 inch / 273 x 406 x 222 mm

• Notes

• Fitted with Micromesh, Mullard, Mazda, Cossor or Osram valves. Also AC version 397 in similar cabinet.

  See also the AC mains version KB 397

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• - - Manufacturers Literature

KB 362 New Pup battery service manual

1330 KB

• Documents regarding this model

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
