Princess RV20
Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Year
- 1960 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 225596
ebay 320987867609 sparkyfirebird
ebay 320987867609 sparkyfirebird
ebay 320987867609 sparkyfirebird
- Number of Tubes
- 14
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Princess RV20 - Kolster Brandes Ltd. KB, K.B.,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 490 x 360 mm / 20.9 x 19.3 x 14.2 inch
- Notes
-
VHF 405 Television with 13 position rotary tuner. (Band I and Band III, early 405 line sets only Band I)

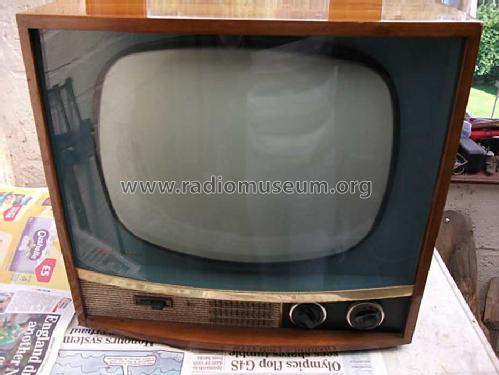

Compact quality wooden bow front cabinet with blue CRT surround.
110 degree short neck 17" CRT thus allowing compact cabinet version of the QV30 TV which uses older tube, 17" Brimar C17SM
- Price in first year of sale
- 71.00 £
- Mentioned in
- Radio And Television Servicing books (R&TVS) (1960-61 page 448)
- Author
- Model page created by Dave Evans. See "Data change" for further contributors.
