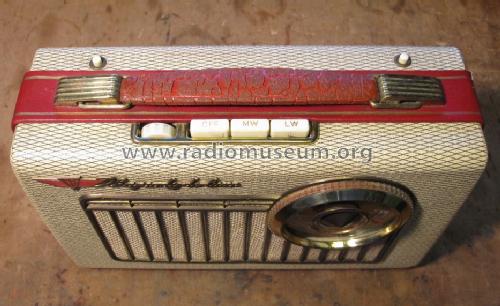

Rhapsody de Luxe PP251

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1958–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119209

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 200-250/90&7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Rhapsody de Luxe PP251 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• This is the de Luxe version of Model MP151/2 or /3

  KB service note
  The PP251 can be identified by its wooden cabinet and the chassis may be either the MP151/2  or MP151/3.

• Net weight (2.2 lb = 1 kg)
• 1.940 kg / 4 lb 4.4 oz (4.273 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
