• Country
• Great Britain (UK)

• Manufacturer / Brand
• ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122222

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• CS9016 CS9018 CS9018 M193 CS9018 CS1312 BT1 CS1312 2SB364 2SD104

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

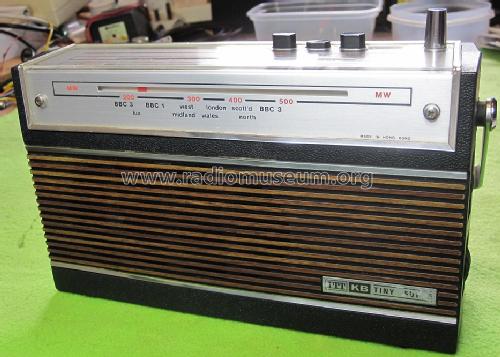

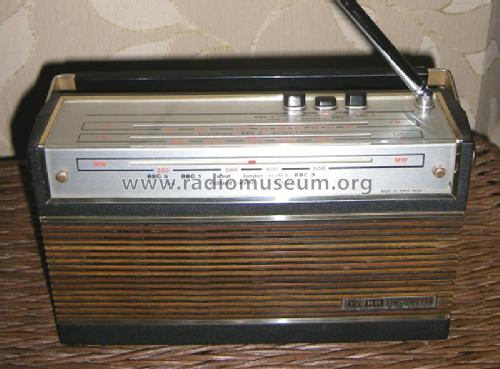

• Model: Tiny Super - ITT-KB; Foots Cray, Kent; ITT

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 124 x 55 mm / 8.1 x 4.9 x 2.2 inch

• Notes

• For additional service information see ITT Schaub-Lorenz Tiny Super LW

  Elliptical loudspeaker 5 x 3 inches.
  FM coverage to 104 MHz

  See also RGD R160

  Dates and prices from Radio! Radio! 3rd Edition 1996

  Made in Hong Kong
  Dimensions exclude handle and buttons

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Price in first year of sale
• 13.95 GBP

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
