- Country
- Great Britain (UK)
- Manufacturer / Brand
- Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176156
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: WG20 GC2 - Kolster Brandes Ltd. KB, K.B.,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 45 x 25 x 15.5 inch / 1143 x 635 x 394 mm
- Notes
-

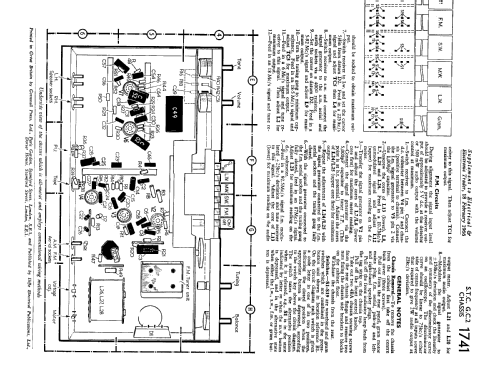

Stereo radiogram (mono radio) fitted with BSR type UA15 record changer unit. SW band 16-50m. Chassis type GC2 is manufactured by S.T.C. and used in models KG021, KG022, KG031, KG032. Also RGD model RG231 & Regentone model TG431.
- Net weight (2.2 lb = 1 kg)
- 73 lb (73 lb 0 oz) / 33.142 kg
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- Trader Sheet 1741
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
