• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161889

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EAM86 EL84 ECL86

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 6 inch = 15.2 cm

• Power out
• 18 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

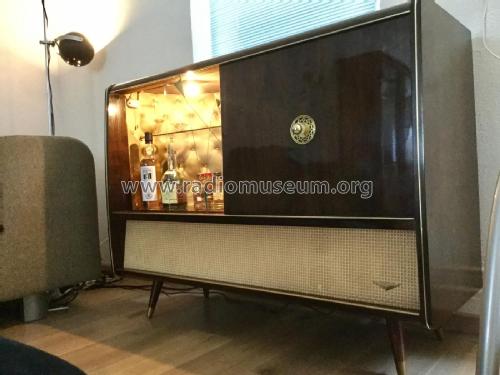

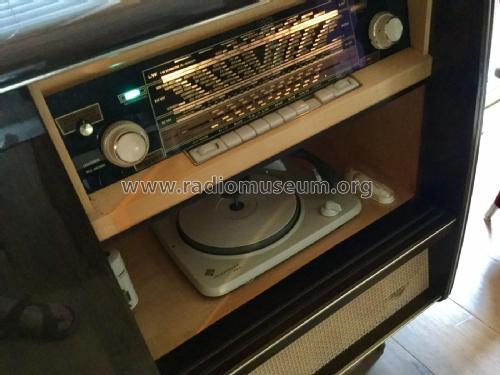

• Model: Aquamarine 62-22662 Ch= 22516 - Körting-Radio; Leipzig, später

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1200 x 780 x 390 mm / 47.2 x 30.7 x 15.4 inch

• Notes
• Export model. FM 88-108; multiplex adapter;

• Net weight (2.2 lb = 1 kg)
• 100 lb (100 lb 0 oz) / 45.4 kg

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Rolf Franke. See "Data change" for further contributors.
