- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1935/1936
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 2407
-
- alternative name: Dietz & Ritter GmbH, Dr.
Q: Radio-Katalog W.Reuter 1935/36
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: ASC4251 - Körting-Radio; Leipzig, später
- Dimensions (WHD)
- 274 x 210 x 190 mm / 10.8 x 8.3 x 7.5 inch
- Notes
- 3-teilig.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Price in first year of sale
- 348.00 RM
- Source of data
- Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference

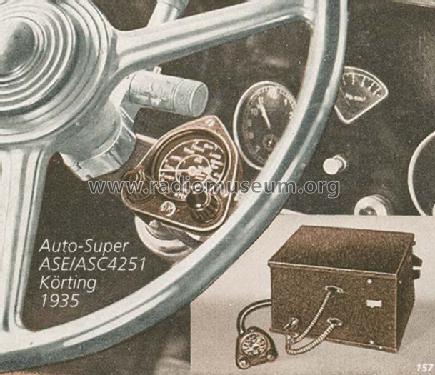

- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
